This plugin is inspired by the procedural map generation algorithm used in the Enter The Gungeon game, designed to create unique map patterns for each level with predefined rooms.

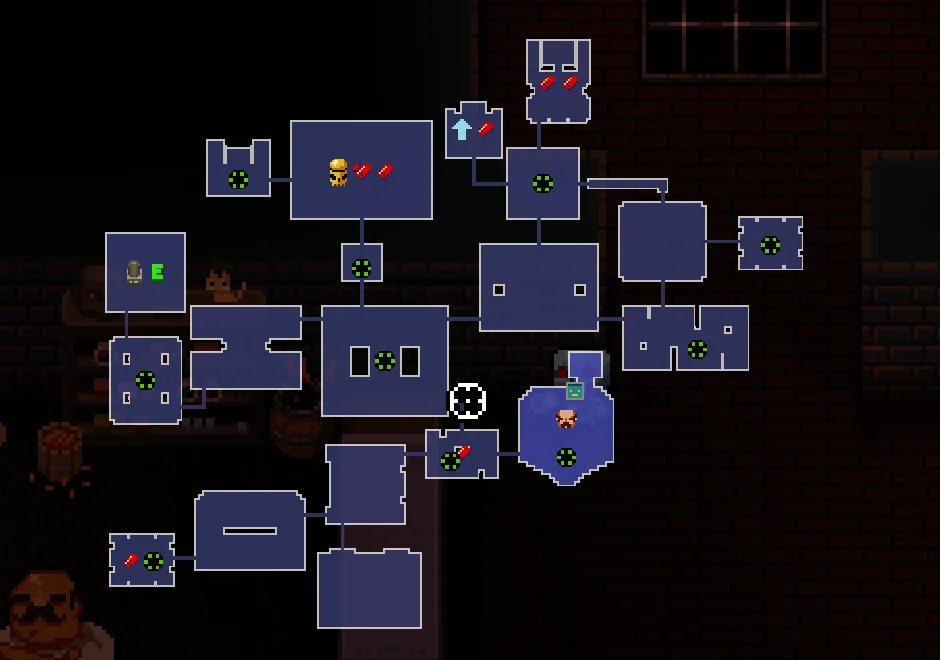

Example of a Map from Enter The Gungeon

Example Map

The plugin recognizes three types of rooms

  1. Normal Room: Features a single entrance and exit.
  2. Large Room: Contains one entrance and multiple exits (at least 2, with no fixed maximum).
  3. No Exit Room: Has an entrance but no exits.

How It Works

  • The map generation process begins with a random selection of predefined rooms. Despite the rooms being predefined, the random sequence of room spawning, inclusion of Large Rooms, and corridor patterns ensure a fresh experience in each game session.
  • Rooms are spawned based on their predefined entrance and exit locations, with the map starting at the player's start map and concluding with a boss room.
  • In cases where a Large Room is selected (featuring multiple exits), the algorithm initiates branching. For more details on branching, see Branching and Large Room.
  • Overlaps with other rooms, corridors, or specified blocks can occur during room spawning. For more information, refer to Overlaps.

Plugin Structure

The plugin package includes three main types: ProceduralGen, RoomActor, and DoorActor (a specialized form of RoomActor), designed for maximum flexibility.

RoomActor

A Room Actor is composed of three components, demonstrated in the ProceduralMapGeneration Content -> ProceduralMapGeneration -> ETGRooms -> Room1 path:

  • DoorSocketEnter: Indicates the room's starting and pivot point.
  • DoorSocketExit: Marks the room's ending point.
  • Box Component: Encompasses the entire room. The box's dimensions must be multiples of the Tile size, with TileSizeX & TileSizeY given 16 as default.

Critical Note: The pivot origin of all rooms must be positioned at DoorSocketEnter.

Setting the Pivot Point

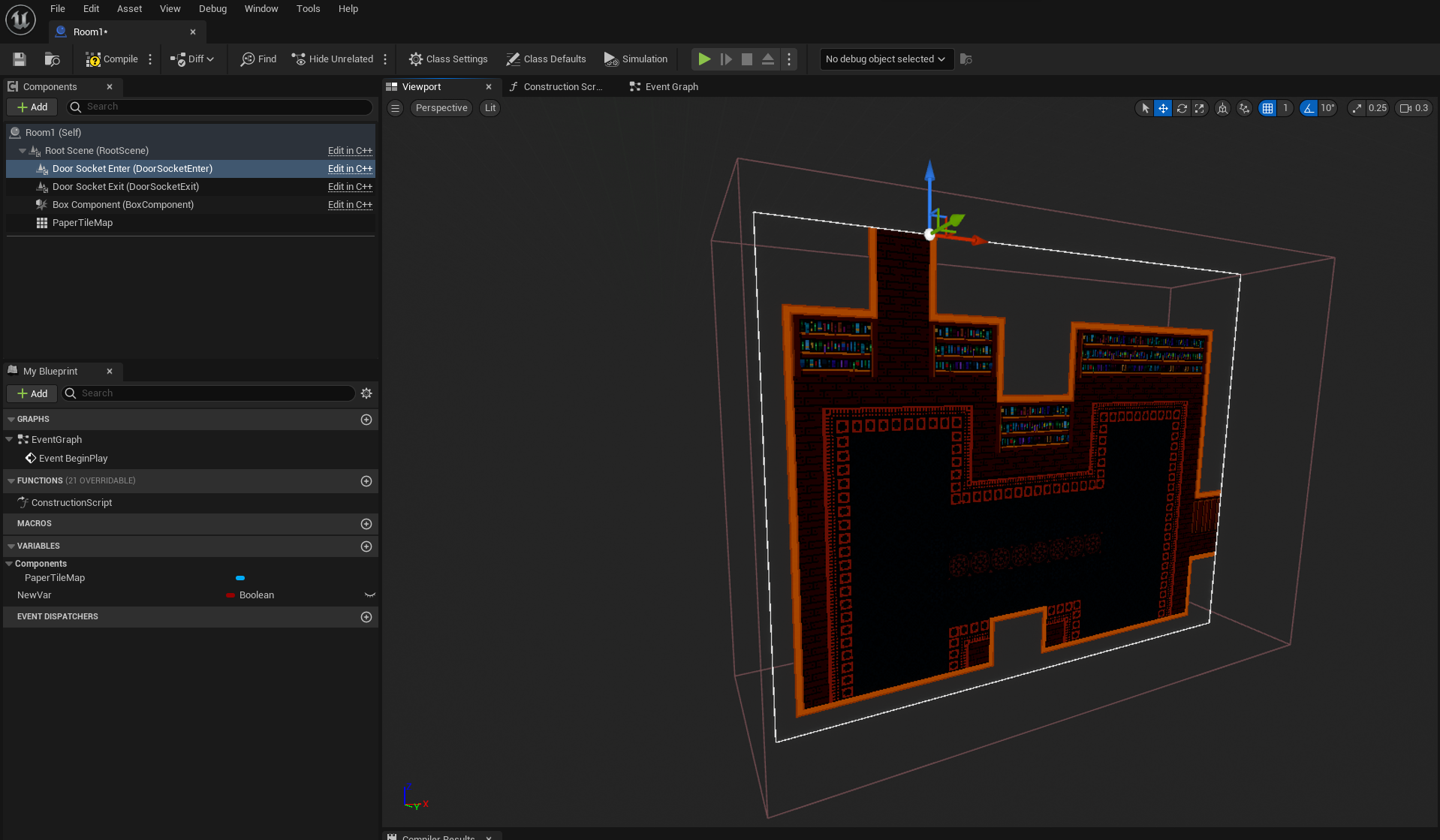

  1. In the Components tab, select all components using CTRL + A.
  2. Adjust the gizmo to align with the Door Socket Enter. This ensures rooms spawn at the correct location.

Configuring Enter and Exit Directions

For example, if DoorSocketEnter is positioned at the top, indicating the entrance, and DoorSocketExit at the right, indicating the exit, set the Door Enter Socket Direction to Vertical Up and the Door Exit Socket Direction to Horizontal Right. This setup is essential for the algorithm to correctly select and spawn rooms.

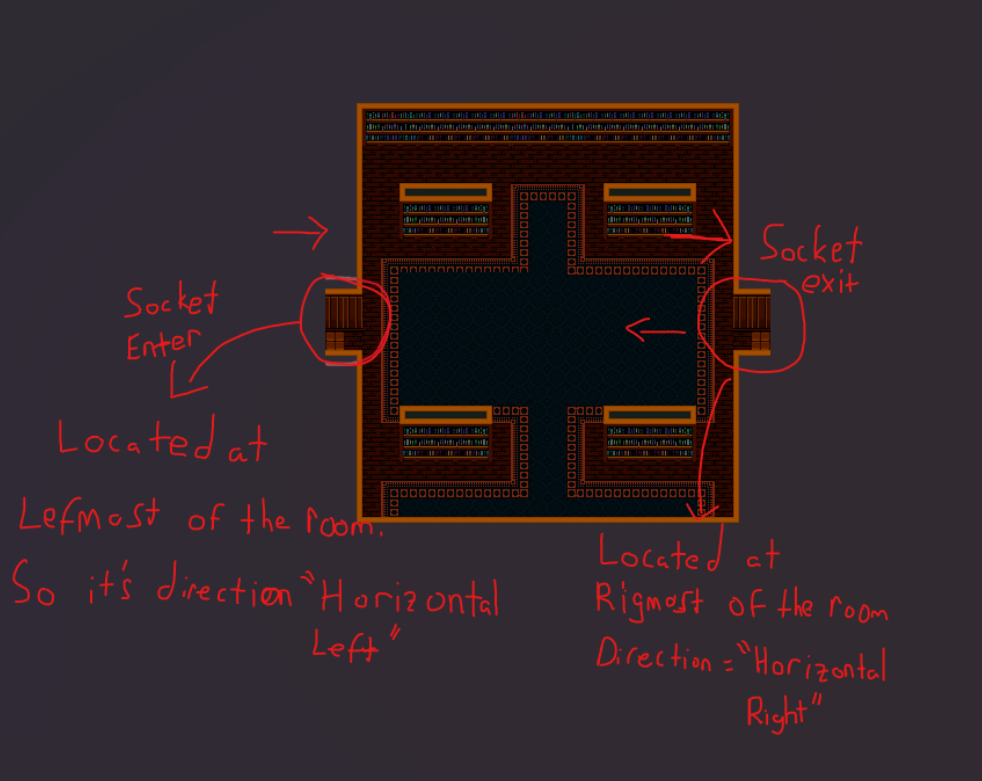

Room Configuration Example

Room Configuration Example 2

Procedural Gen

This actor configures the settings for the procedural map generation algorithm. For detailed attribute information, refer to the references.

Algorithm Overview

If the plugin operates outside debugging mode (with Debug Room Sequence and Block Room Locations empty), the following steps occur:

  • A room is randomly selected from the Room Designs.
  • Rooms are sequentially spawned at the exit socket of the preceding room, continuing until the specified Number of Rooms is reached.
  • If overlap occurs during room spawning, the overlapped room will move away from previous room's exit socket location and a corridor path will be constructed to connect two rooms .
  • If a Large Room is selected, the algorithm initiates branching and only terminates with NoExit rooms. For more details on branching, see branching.

Final Steps

Tile indexes are selectable via Command Prompts, with editor widgets available to simplify room configuration. Refer to Slate Editor for guidance.

Before generating maps, ensure all prerequisites are met by consulting the Essential Checklist. Rooms and configurations in the content browser are provided for reference.
