Branching

Branching plays a crucial role in ensuring the uniqueness of map generation. This section uses a large room as an example to illustrate the concept.

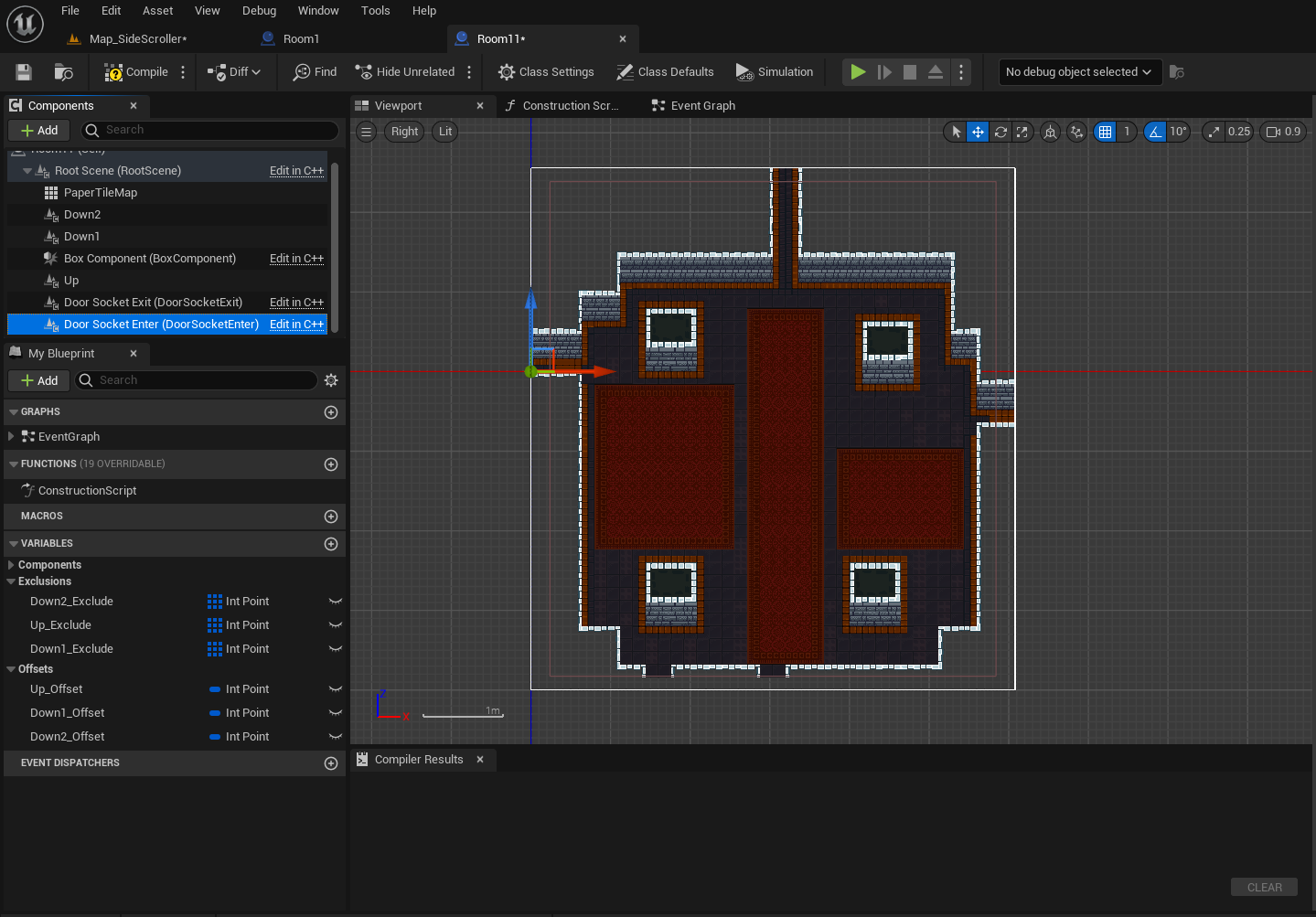

In the components section, the Door Socket Enter is positioned at the leftmost part of the room, with Door Socket Exit placed rightmost exit point. Additional scene components like Down2, Down1, and Up are manually created and located at their respective exit points.

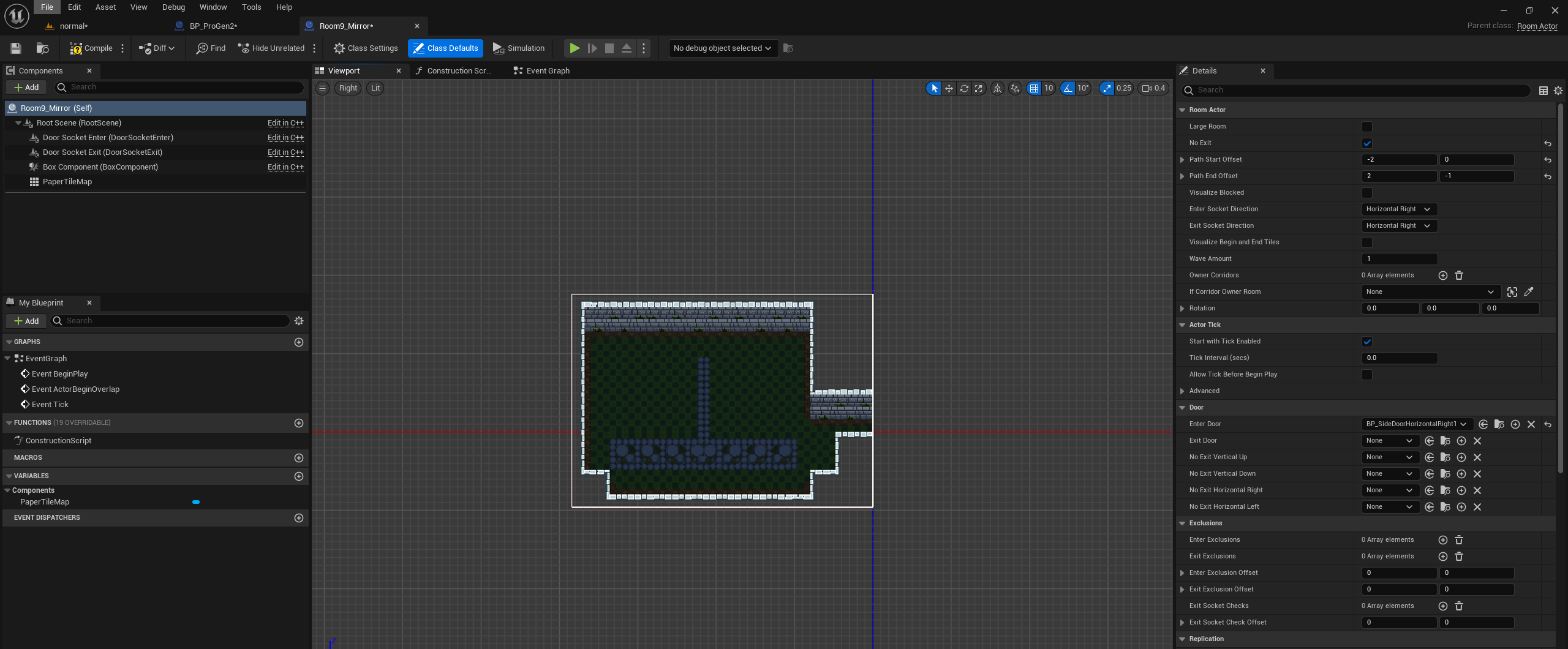

Configuration Details in Variables Tab

• Exclusion Arrays: Specified by "SceneCompName"_Exclude arrays, these exclude tiles relative to the scene component's location. For instance, Up_Exclude will exclude tiles at the top exit of the room.
• Offset Arrays: "SceneCompName"_Offset arrays adjust the exclusion arrays' positions. Up_Offset modifies the Up_Exclude indexes.

Manual configuration of blocking tiles is tedious; utilizing Editor Tools is recommended for a more efficient process.

Room Properties

• Mark the room as LargeRoom in the room actor's details pane under Large Room. If unchecked, the room will not function as a large room.
• For new scene components in a large room, set the component's direction via tags in the detail pane:
  • StraightUp for Vertical Up
  • StraightDown for Vertical Down
  • SideRight for Horizontal Right
  • SideLeft for Horizontal Left

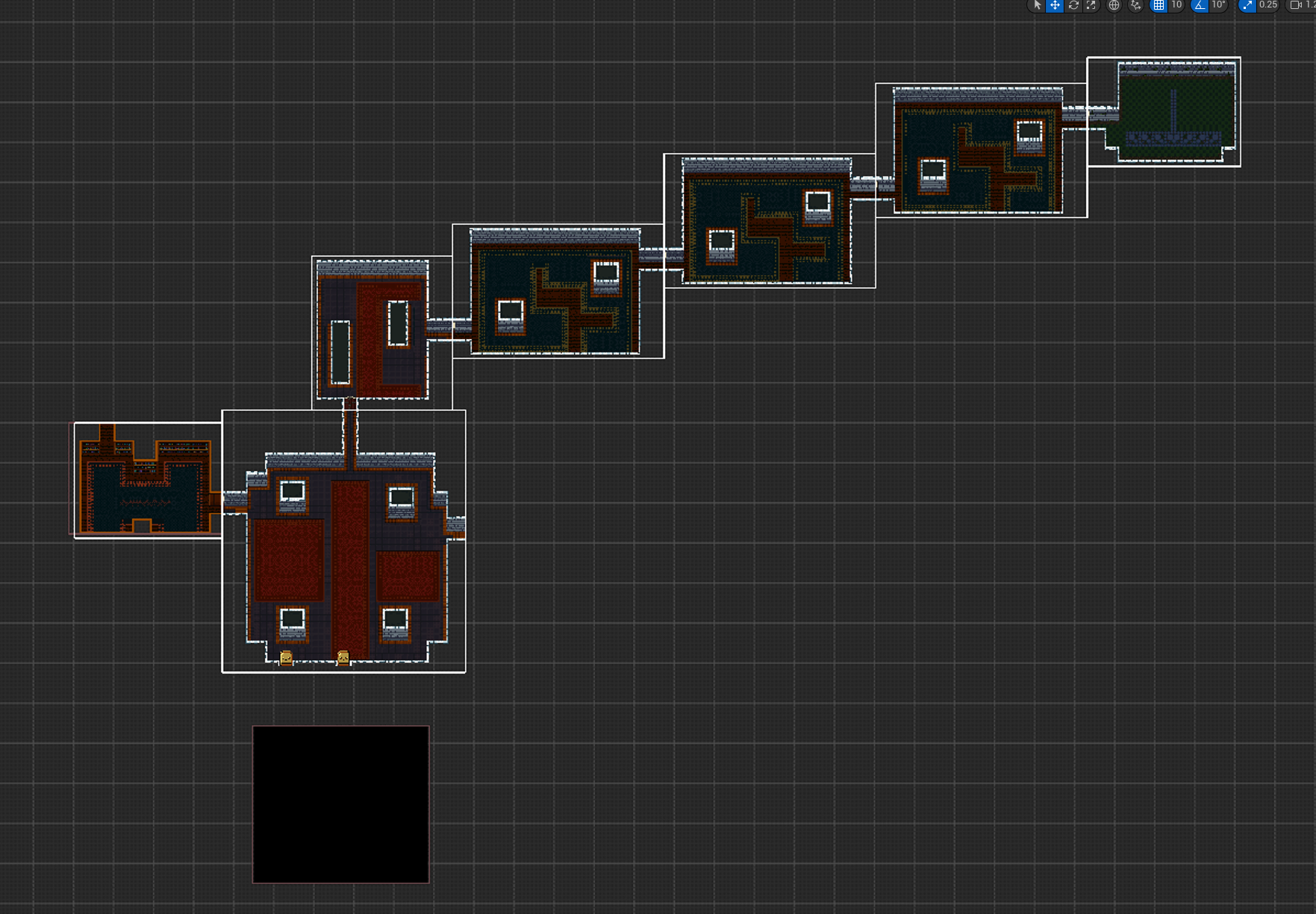

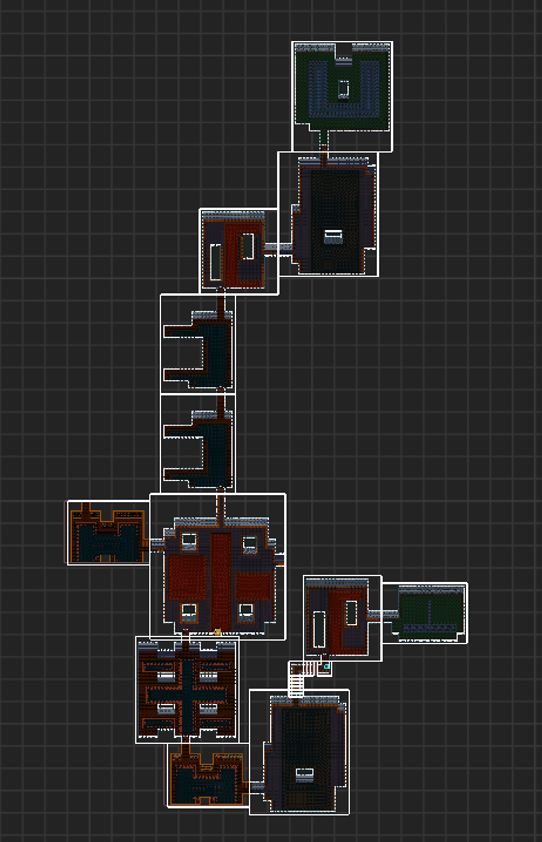

The following image will be used for the given examples. Visualizations can be turned on or off.

Branching Mechanics

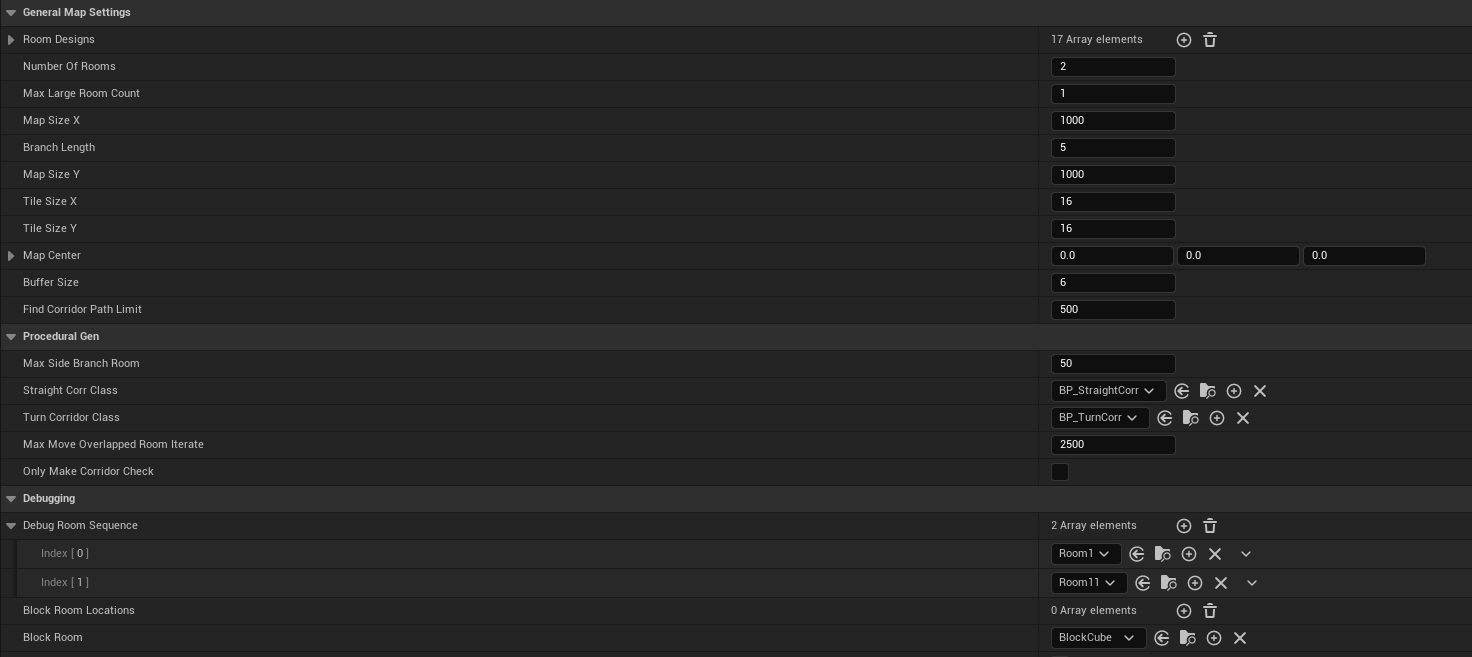

• Number of Rooms: Specifies the count of normal rooms. For example, with Number of Rooms set to 2, additional branch rooms can spawn without counting towards this total. In given map configuration, only Room1, Room11 will be spawned. Max Side Branch Room property will account for total spawned branch rooms.
• Branch Length: Determines the amount of room to spawn for each branch, allowing for varied and unique map shapes with even a single LargeRoom.

Each initiated branch terminates with a NoExit room, which has an entrance but no exits. The NoExit room's NoExit property must be checked, and its Door Socket Enter correctly set.

If the initial branch location is unable to spawn, room branch will not be initiated and room's NoExit door will be spawned.

• For optimal results, clear the Debug Room Sequence and Block Room Locations

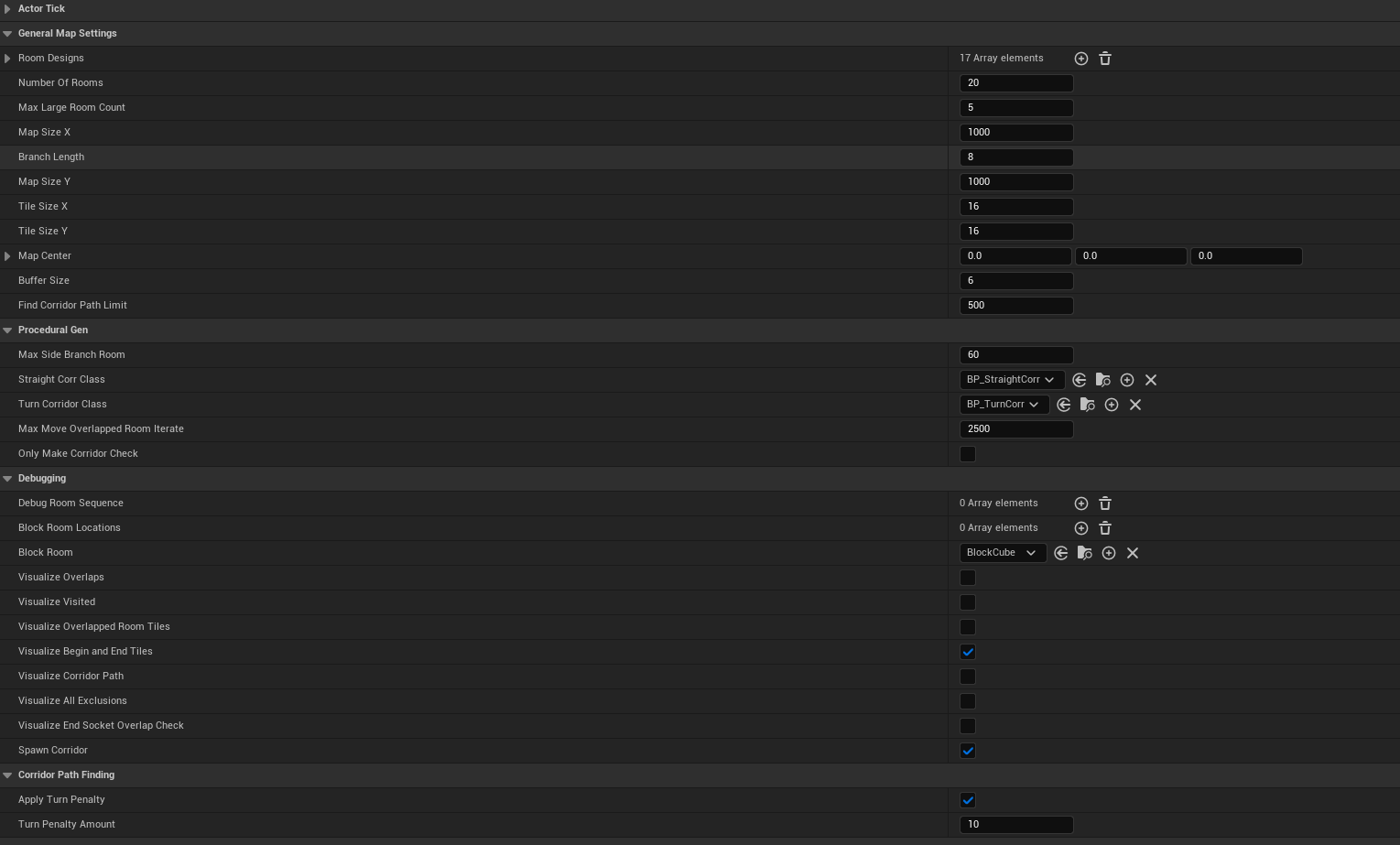

• Adjust the Number of Rooms, Max Large Room Count, and Max Side Branch Room to suitable values, keeping in mind that too high values for Max Large Room Count and Branch Length compared Number Of Rooms are not recommended.

Branching Examples

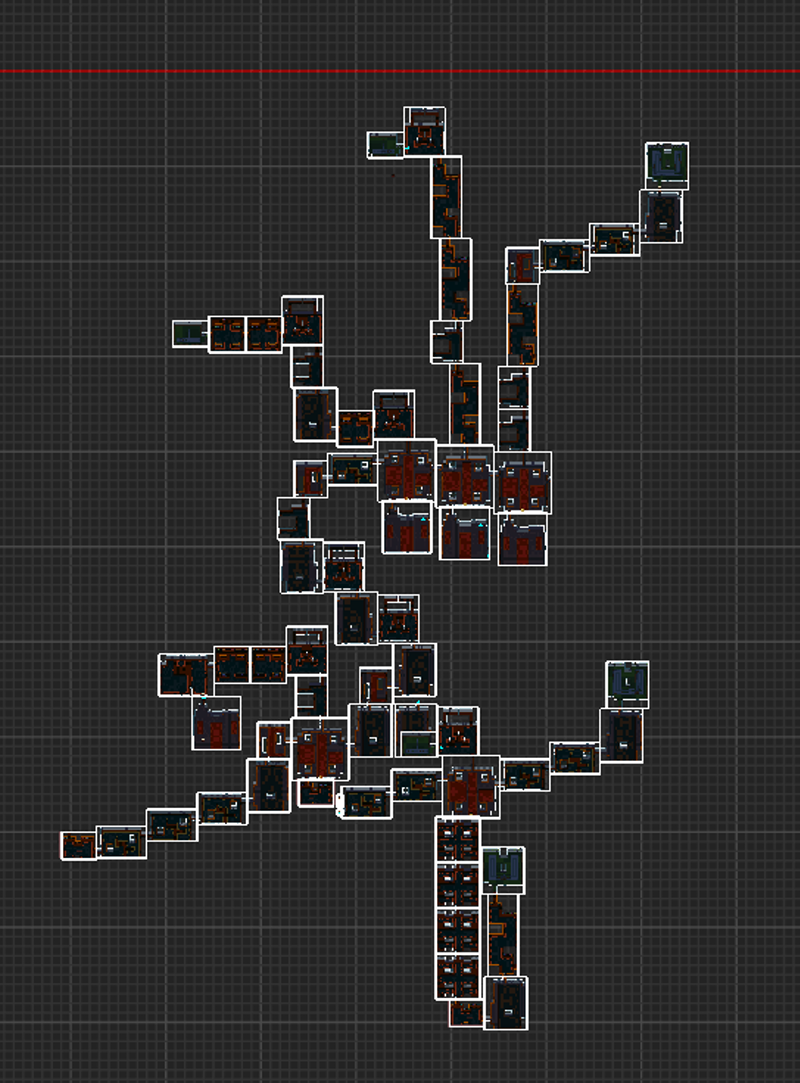

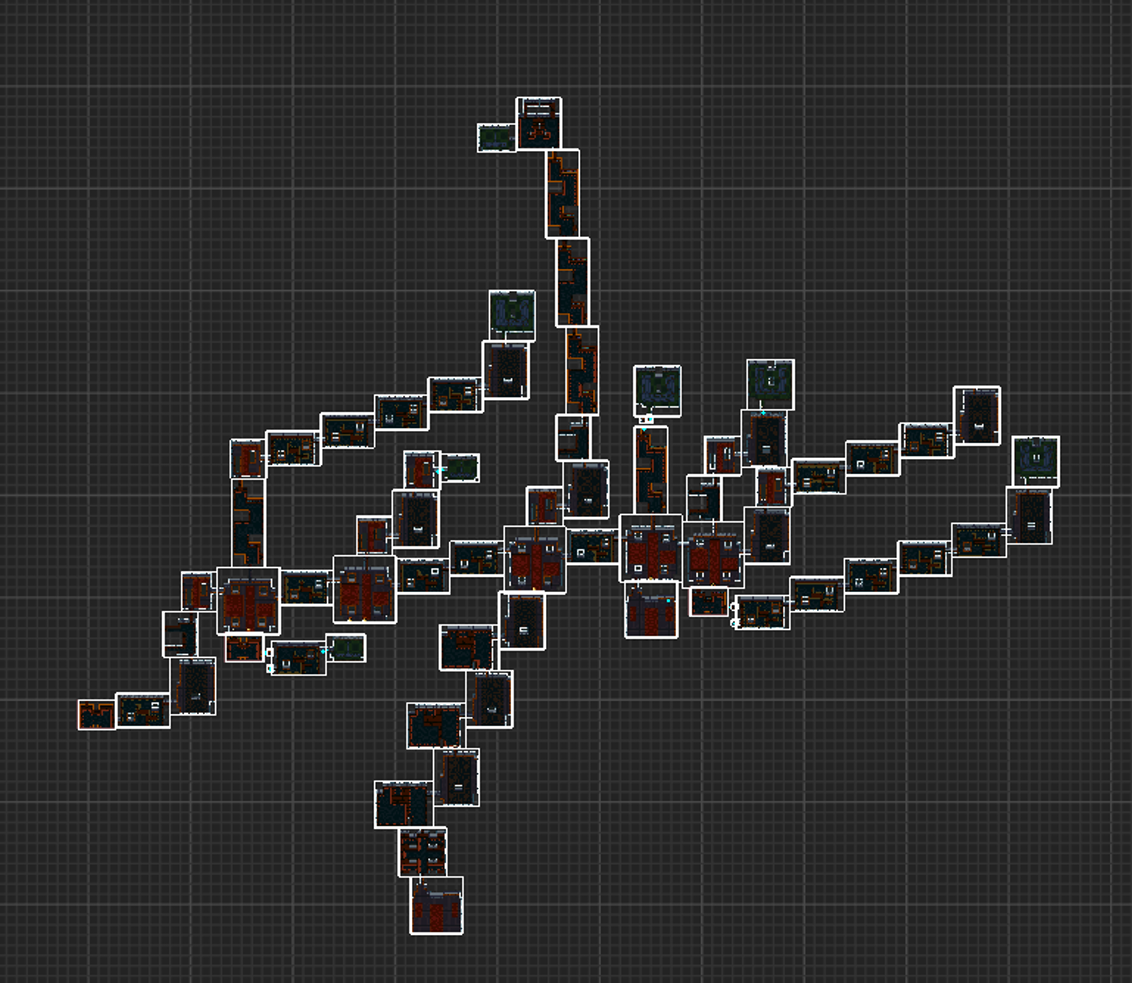

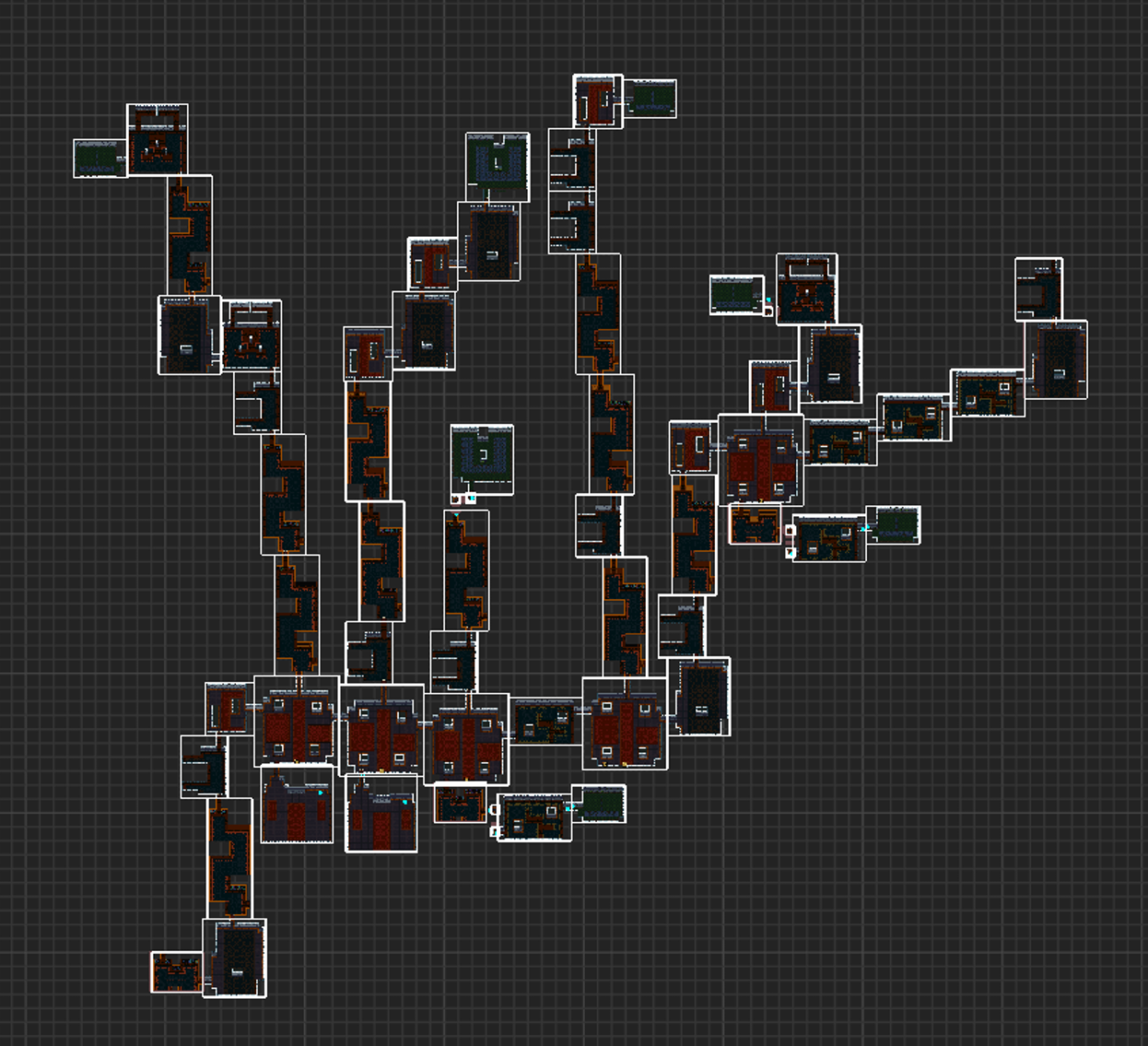

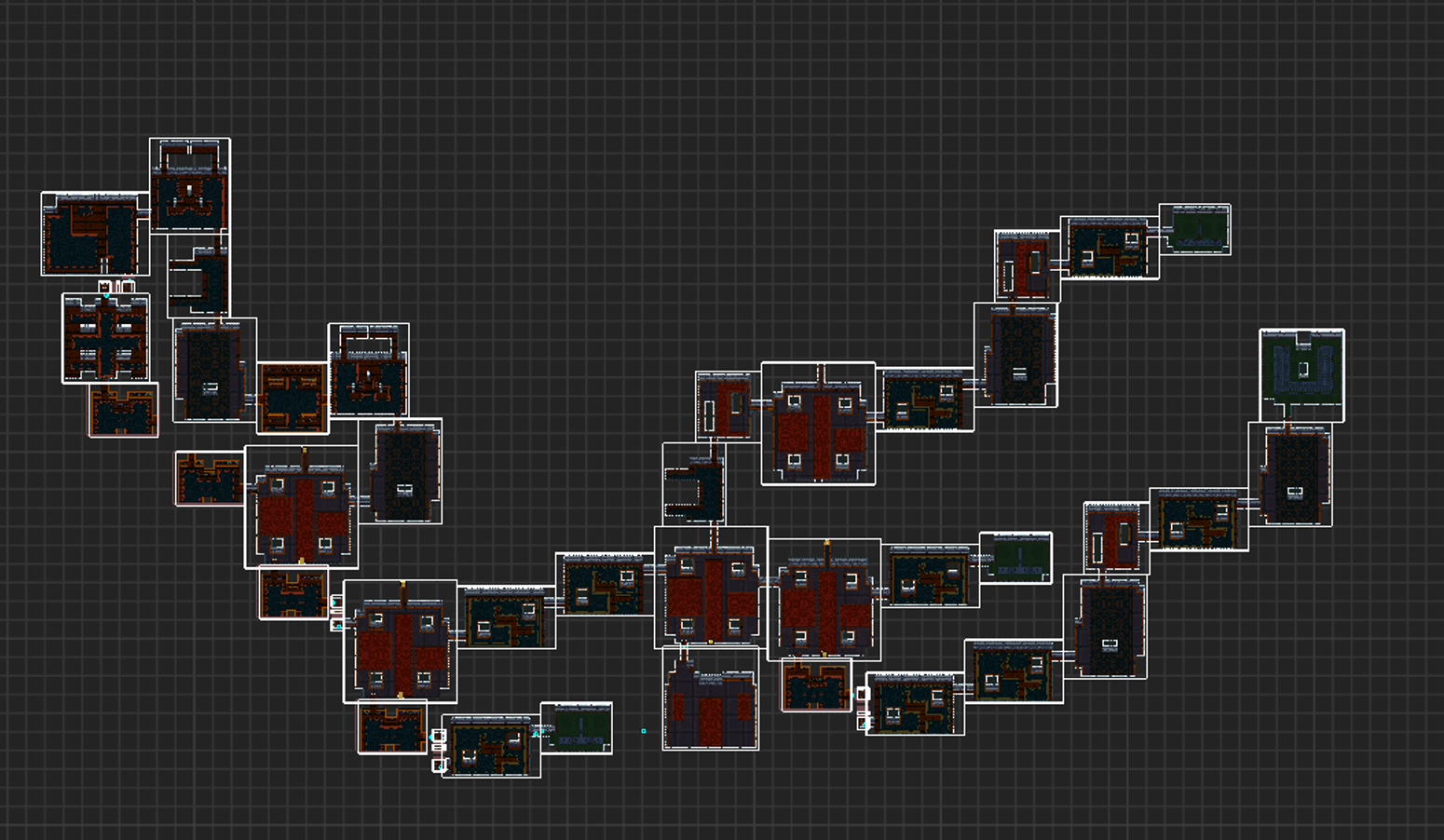

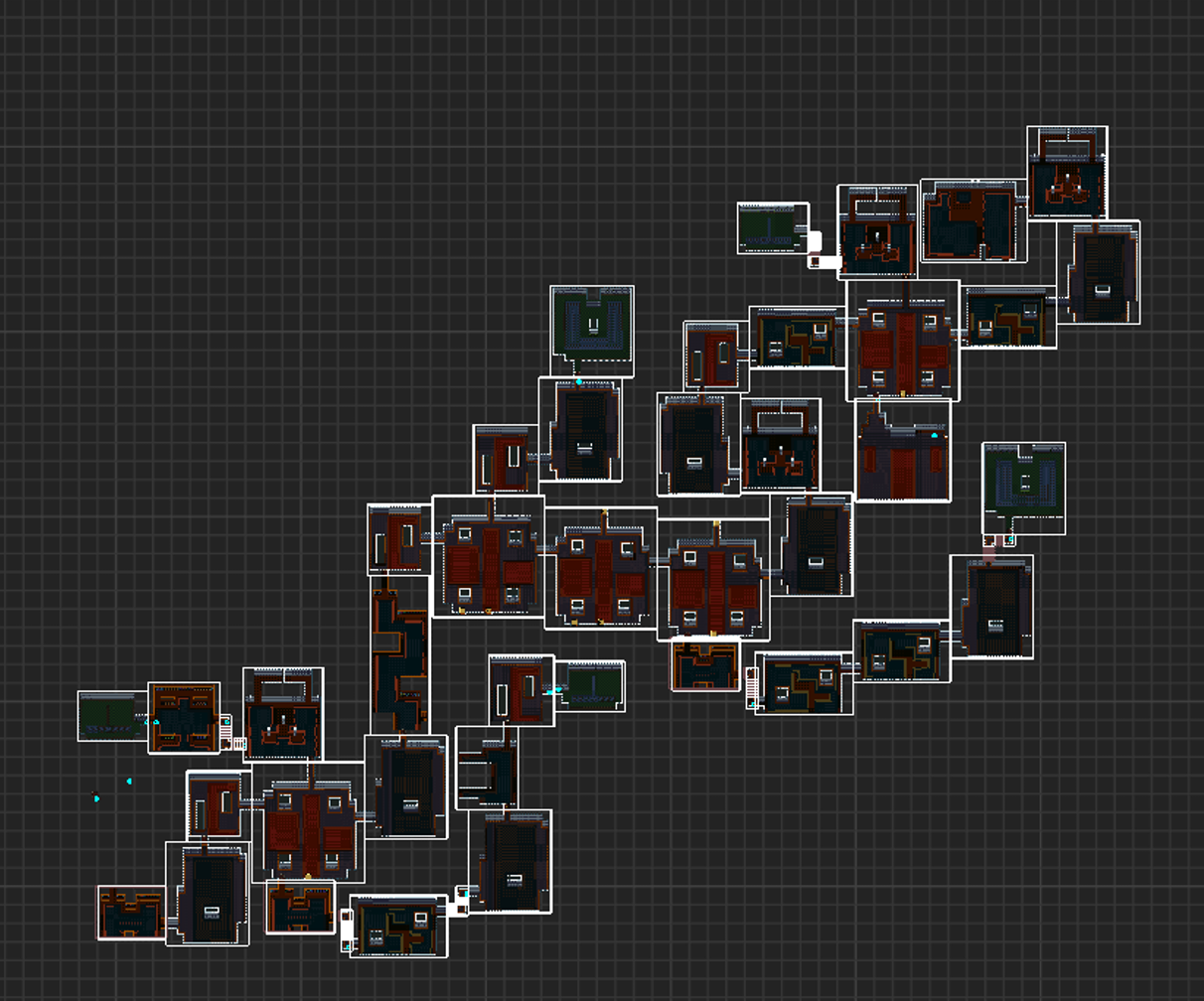

Some branching example for this given configurations

If more unique rooms with different branch points are given, it's possible to create much unique and different map patterns. In the Enter The Gungeon each level has over 100 different rooms to give unique effect for each playthrough.
