Editor Tools

The Editor Tools are designed to simplify manual room configuration processes within the plugin. Below are detailed steps on how to utilize these tools effectively.

Getting Started with Editor Tools

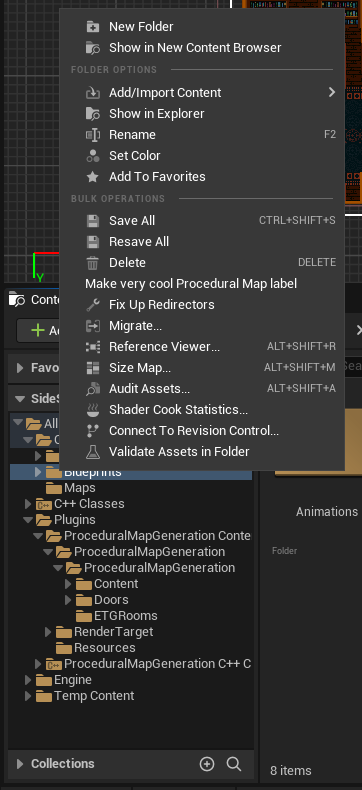

1. Initiate Tool: Right-click on any folder within the Content Browser (excluding C++ base classes) and select Make very cool Procedural Map label. (The plugin will become more professional manner following core optimization and error resolutions.)

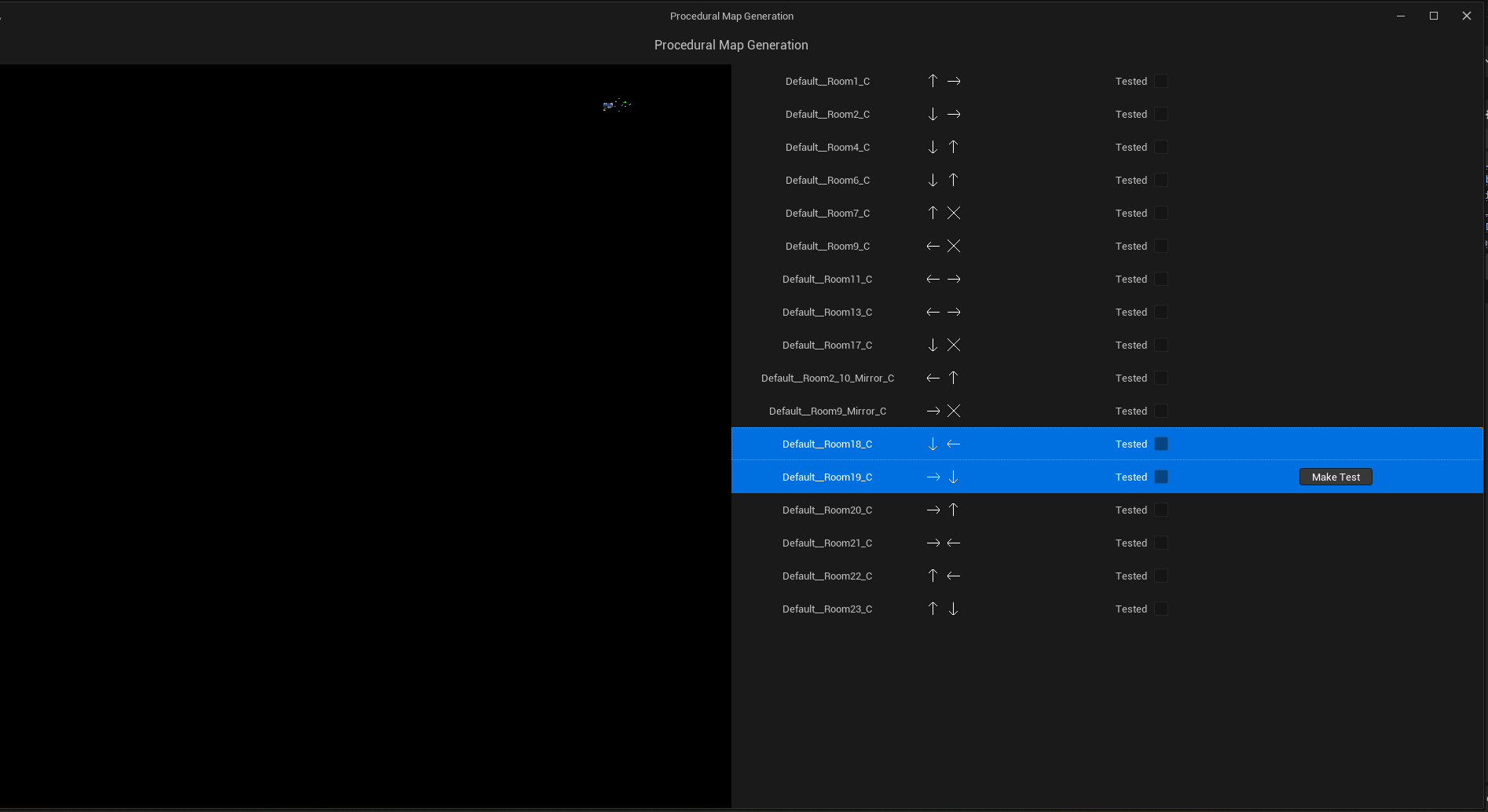

1. Tool Window: Upon selection, a window displaying all created rooms will appear, featuring:
   • Label: The name of each room.
   • Two Images: Representing the Enter and Exit socket directions. For rooms marked as NoExit, an X image will denote the Exit Direction.
   • Disabled Checkbox: Indicates whether all tests are passed for a room (future functionality).
   • Room Selection: Clicking on a room highlights with yellow color compatible rooms for pairing. Use Shift+Click to select a secondary room, revealing a Make Test button.

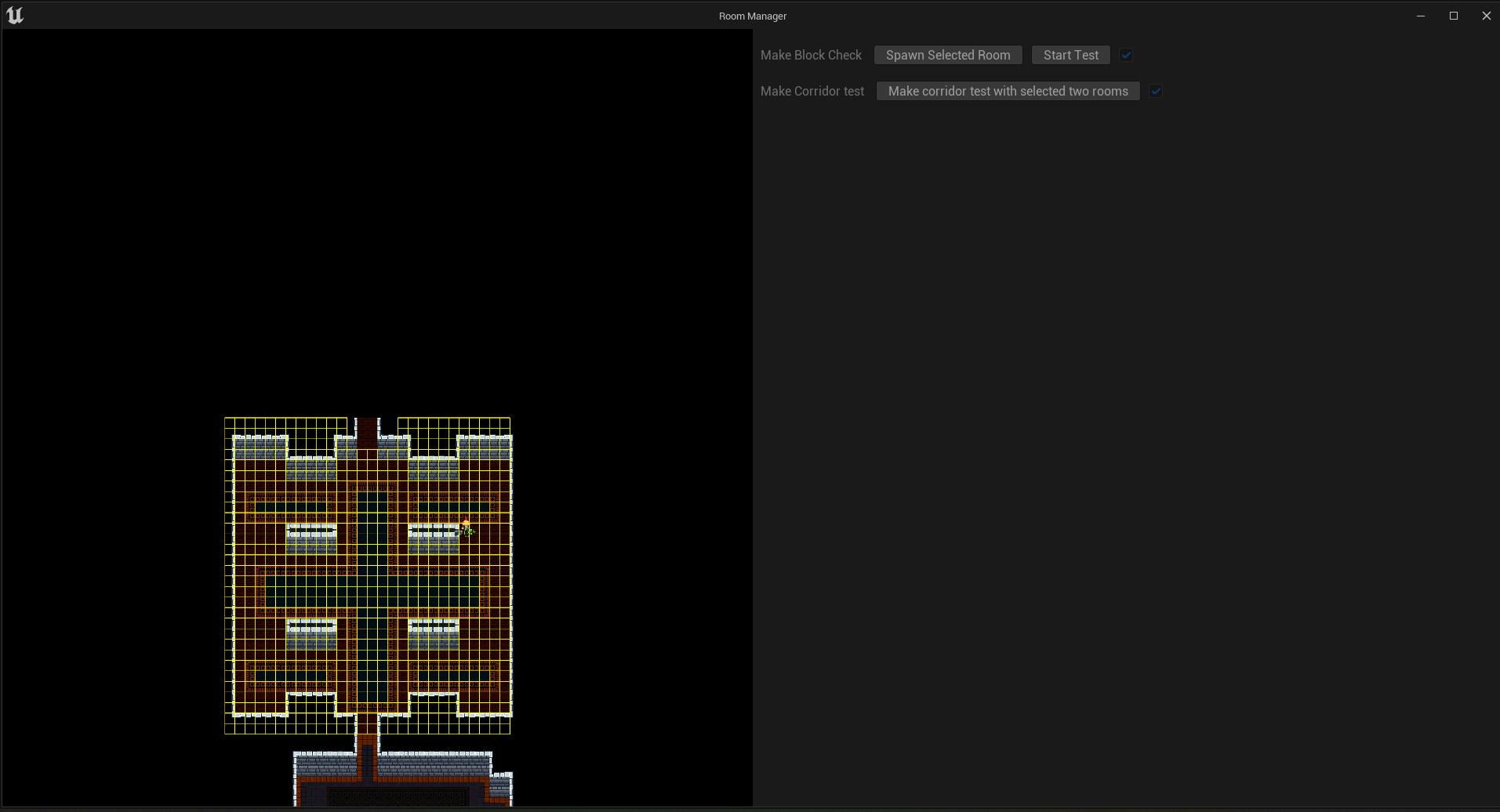

1. Room Manager: Triggered after selecting two rooms, unless a NoExit room is chosen first. Features include:
   • Spawn Selected Room: Spawns the first selected room.
   • Navigation: Use W A S D E Q keys and the Scroll Wheel to move and adjust speed within the editor.

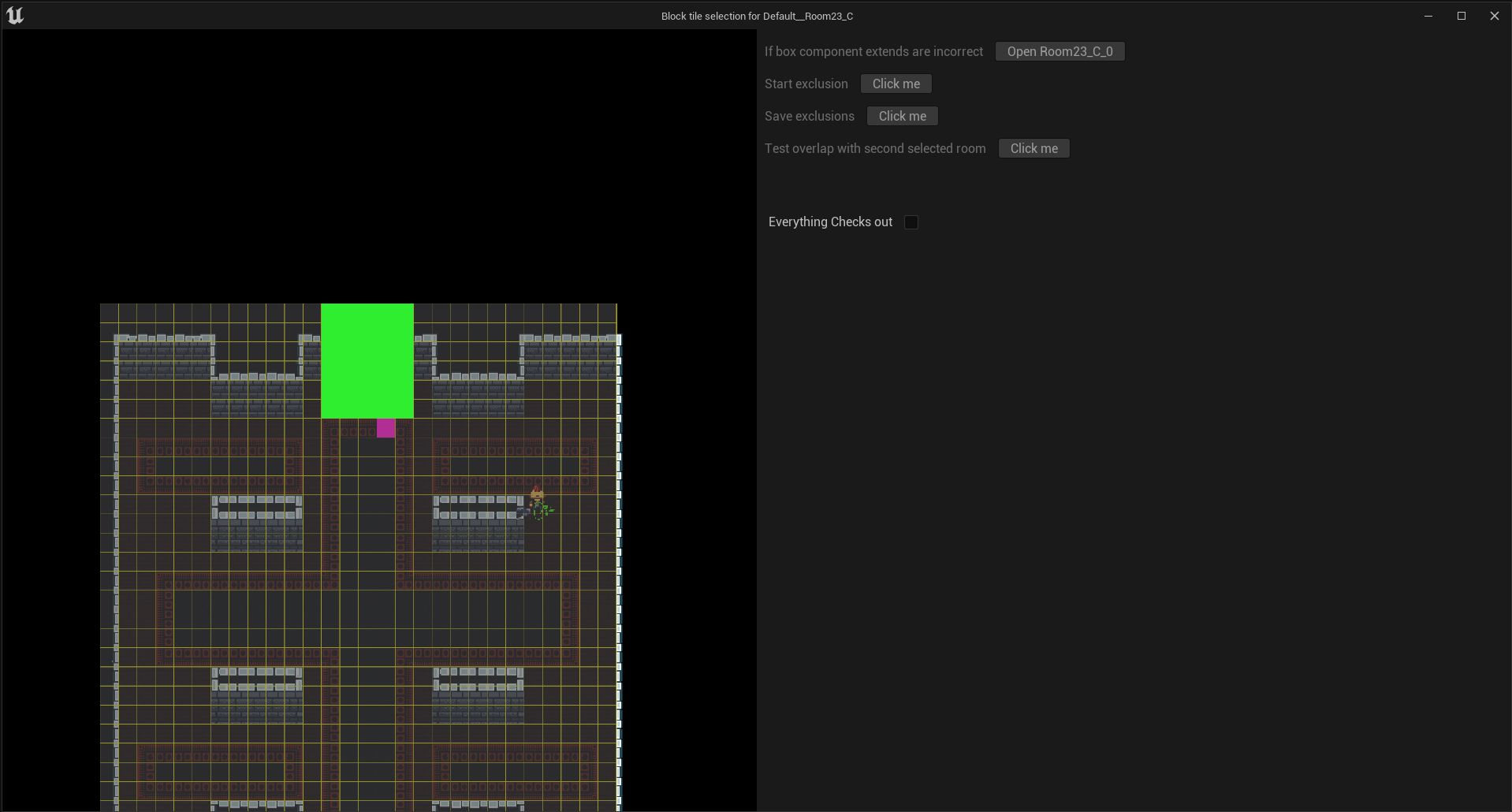

1. Start Test: Launches the Block Tile Selection window, allowing for detailed configuration:
   • Open "RoomName": Opens the room's Blueprint editor if box extents are incorrect, with tiles outlined by debug boxes.
   • Start Exclusion: A button to begin tile exclusion selection, with Shift to select and Ctrl to deselect tiles.
   • Save Exclusions: Saves selected exclusions to the blueprint permanently.

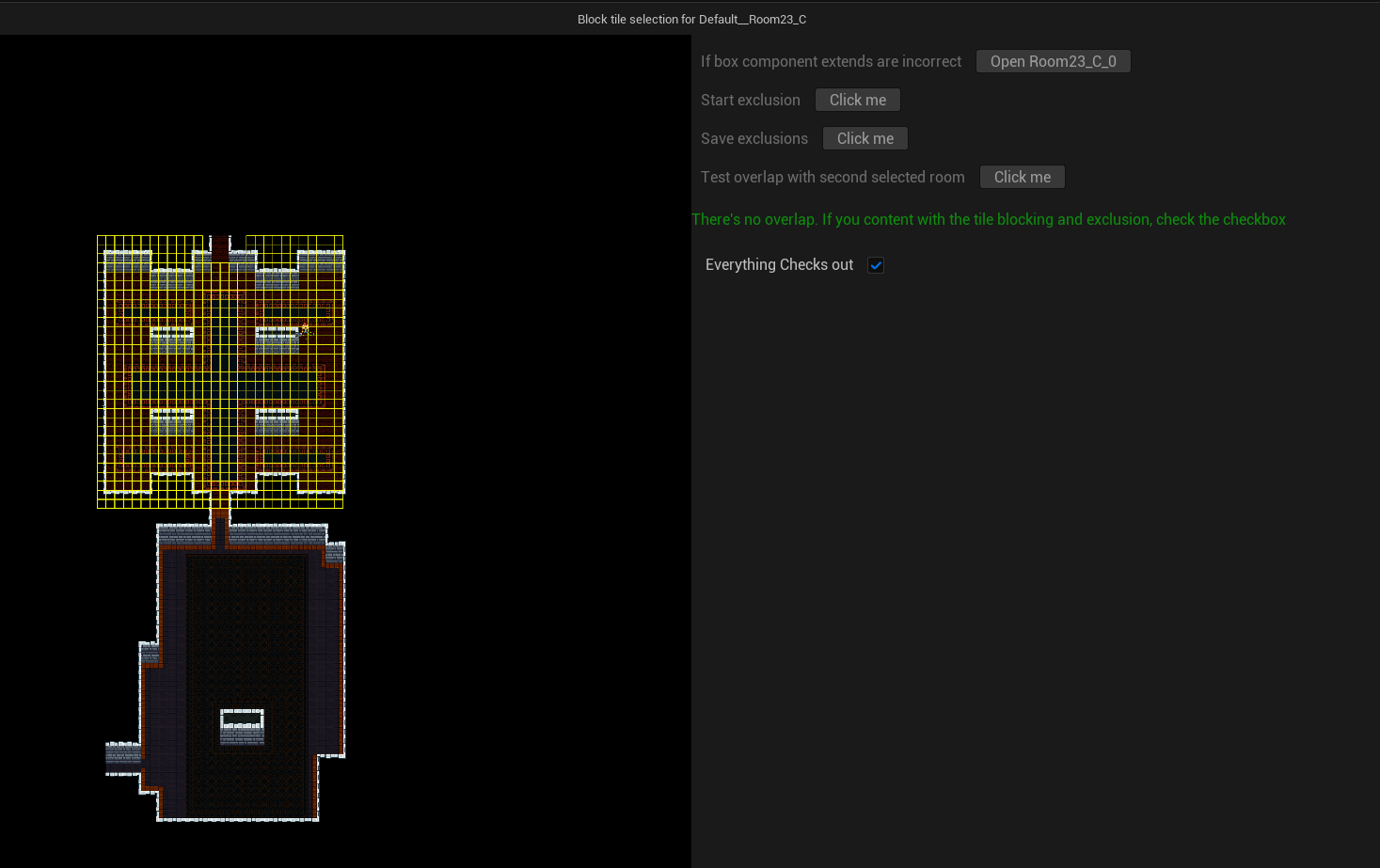

   • Test Overlap: Tests overlap with the second selected room, indicating success or failure through color coding.
   • Confirmation Checkbox: Confirms correct block tile exclusion settings for the first room.

1. Corridor Scenario Testing: Initiated by clicking Make Corridor Test With Selected Two Rooms, leading to corridor configuration options.

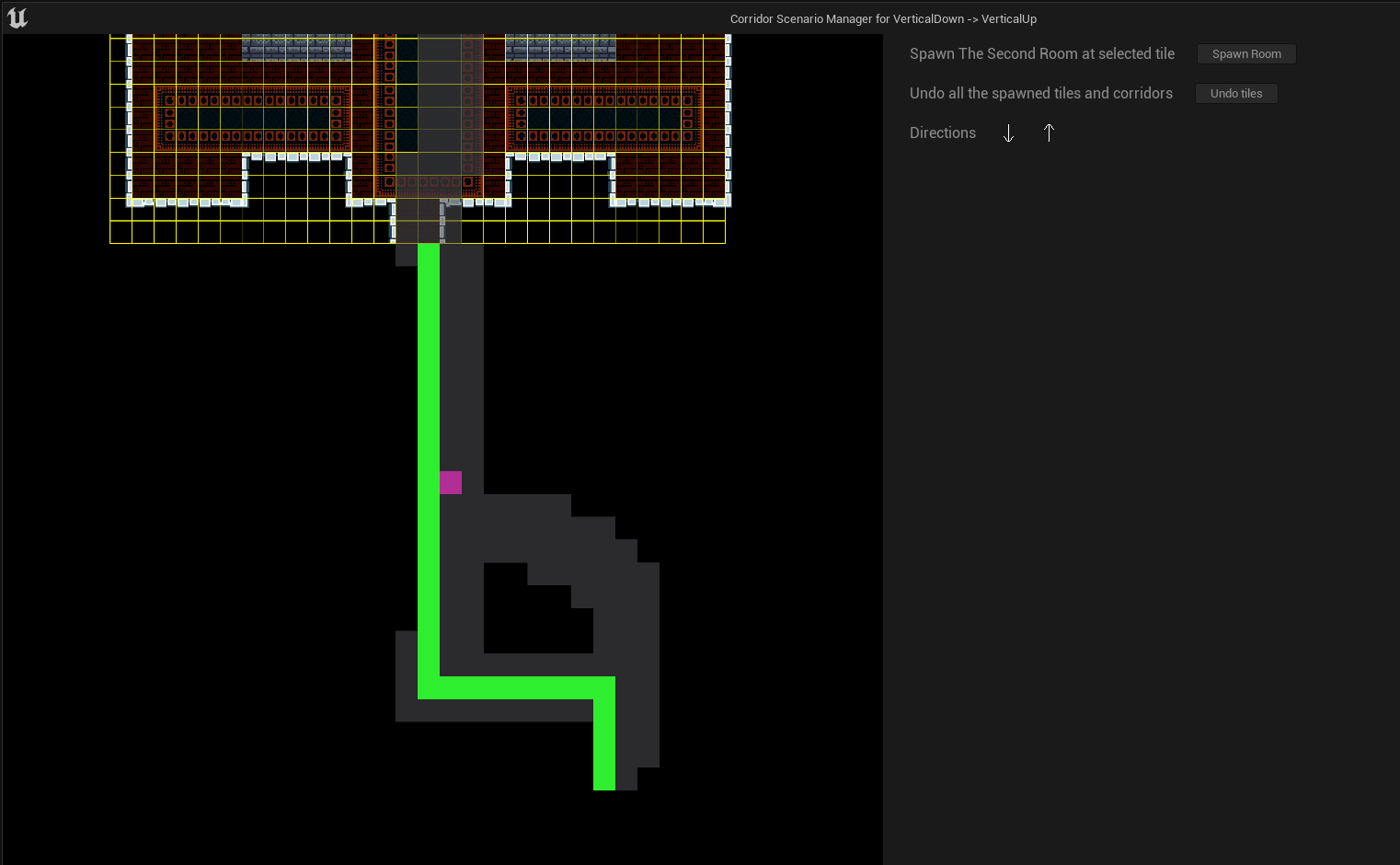

2. Corridor Scenario Manager: Allows for corridor path creation between the first and second selected rooms, with functionalities to spawn rooms, adjust paths, and restart operations as needed.

   • Path Selection: Navigate to the End Socket, select tiles for the path using Shift, and deselect with Ctrl.
   • Spawn Room: Confirms the path and spawns the room, with a message box to indicate if the selected tile direction is incorrect.

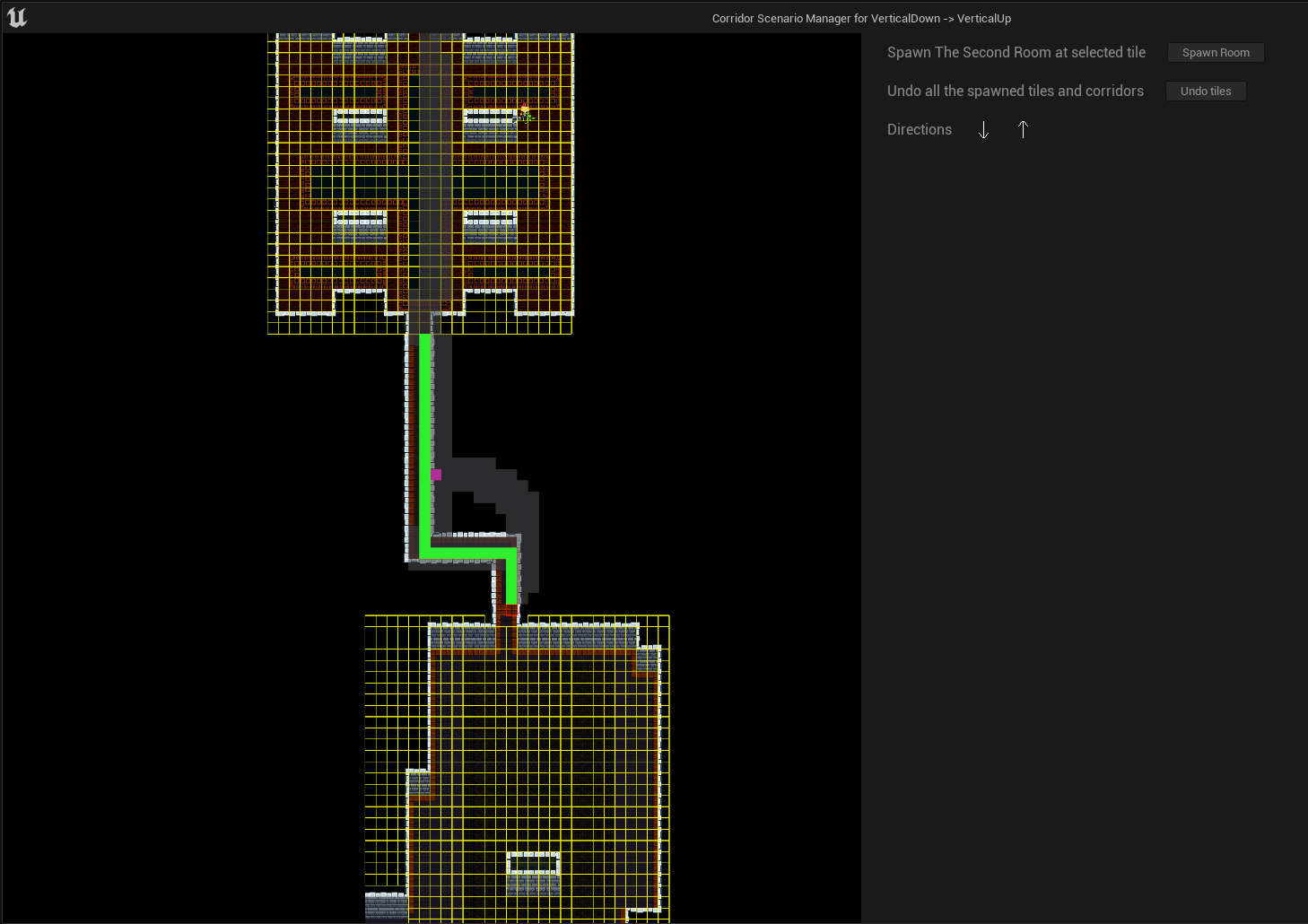

Upon Spawn Room click.

Upon successful corridor construction, consider adjusting the Room's Path Start & End Offsets to optimize the layout.

These editor tools are designed to streamline the room and corridor configuration process, reducing the need for manual testing and ensuring a smoother development workflow.
